The PE4314 is a 75Ω HaRP™ technology-enhanced, 6-bit RF digital step attenuator (DSA) that supports a frequency range from 1 MHz to 2.5 GHz. It features glitch-less attenuation state transitions and supports 1.8V control voltage and an extended operating temperature range up to +105°C, making this device ideal for multiple wired broadband applications.

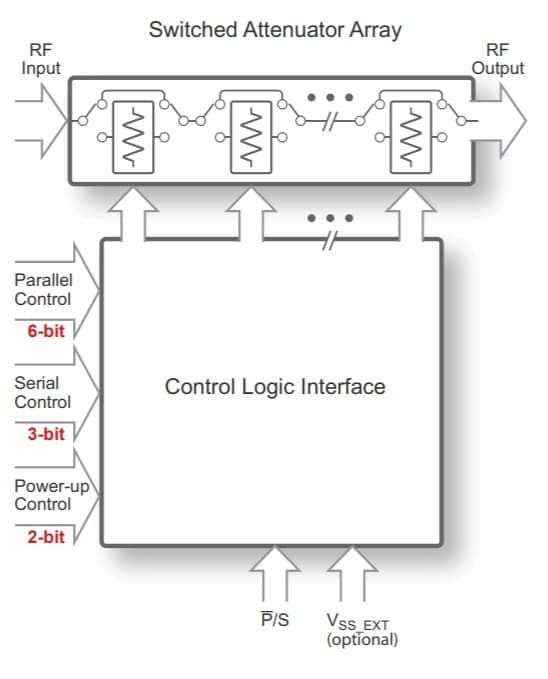

The PE4314 is a pin-compatible upgraded version of the PE4304, PE4307, PE4308 and PE43404. An integrated digital control interface supports both serial and parallel programming of the attenuation, including the capability to program an initial attenuation state at power up.

The PE4314 covers a 31.5 dB attenuation range in a 0.5 dB step. It is capable of maintaining 0.5 dB monotonicity through 2.5 GHz. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports.

Specifications

Description6-bit; 64 states
Min Freq.1 MHz
Max Freq.2500 MHz
Max Typ. IL (dB)1.5
Min Typ. IL (dB)1
IIP3 (dBm)58
Attn Range (dB)0.00–31.50
Attn Step (dB)0.5
InterfaceParallel (latched; direct); Serial
Bits6
Attenuation Accuracy (dB @ 1 GHz)±(0.15 + 3% of setting)
Switching Time370 ns
ESD HBM (V)1500
Package (mm)4x4
Package20L QFN

Key Features

      Attenuation step of 0.5 dB up to 31.5 dB
      Glitch-less attenuation state transitions
      Low distortion for CATV and multi-carrier applications
      Extended +105°C operating temperature
      Parallel and serial programming interfaces
      Packaging: 20-lead 4 × 4 × 0.85 mm QFN
