END OF LIFE (EOL)
This product is currently going through the EOL process. It has a last-time buy date of November 14, 2024 and a final ship date of May 14, 2025. Replace with PE42412. For more information, please contact your local sales representative.

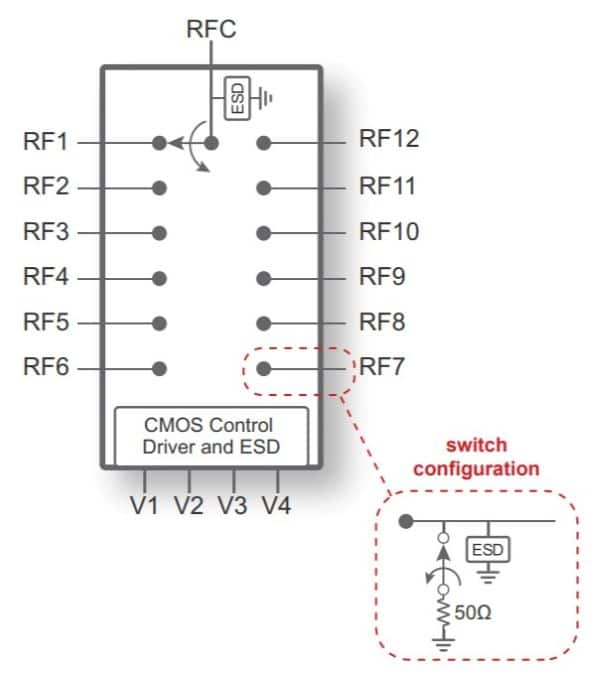

The PE426412 is a HaRP™ technology-enhanced absorptive SP12T RF switch that supports a frequency range from 10 MHz to 8 GHz. It delivers high isolation, low insertion loss and fast RF TRISE/TFALL time, making this device ideal for filter bank switching and RF signal routing in test and measurement and wireless applications up to 8 GHz. No blocking capacitors are required if DC voltage is not present on the RF ports.

Specifications

DescriptionSP12T (A)
Min Freq.10 MHz
Max Freq.8 GHz
Max Typ. IL (dB)2.4
Min Typ. IL (dB)0.7
Max Typ. Iso (dB)69
Min Typ. Iso (dB)22
P1dB/P0.1dB (dBm)40.0 / 37.5
IIP3 (dBm)60
Max Power Rating (dBm)31
Max Temp (ºC)125
VDD Range (V)2.3–5.5
Switching Time0.232 µs
ESD HBM (V)1000
Package (mm)5x5
Package32L QFN
Specs Table

Enter Table Here

Key Features

      High isolation: 39 dB @ 6 GHz
      Low insertion loss: 1.3 dB @ 6 GHz
      RF TRISE/TFALL time of 100 ns
      Power handling of 31 dBm CW
      Logic select (LS) pin provides maximum control logic flexibility
      Terminated all-off state mode
      –55°C to +125°C operating temperature support
      Packaging: 32-lead 5 × 5 mm QFN
