UltraCMOS® RF Digital Step Attenuator

UltraCMOS® RF Digital Step Attenuator

PE43205

ico-download-2PDF

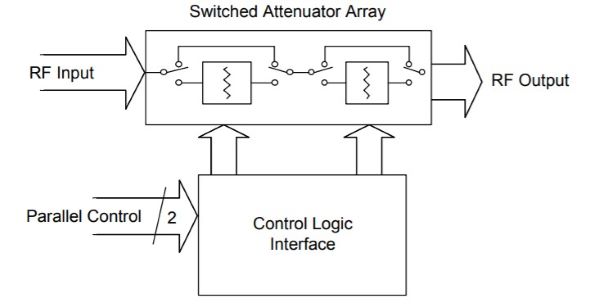

The PE43205 is a 50Ω, HaRP™ technology-enhanced fast switching 2-bit RF digital step attenuator (DSA) designed for use in 3G/4G wireless infrastructure and other high performance RF applications.

This DSA is a pin-compatible upgraded version of the PE43204 with a wider frequency and power supply range, and extended operating temperature range.

Covering an 18 dB attenuation range in 6 dB and 12 dB steps, it maintains high RF performance and low power consumption from 35 MHz through 6 GHz. PE43205 is offered in a 12-lead 3 × 3 mm QFN package. In addition, no external blocking capacitors are required if 0 VDC is present on the RF ports.

Contact Sales & Support
Buy product
Download Materials

Technical Resources

Industry-Leading Product

Specifications

Description2-bit; 4 states
Min Freq.35 MHz
Max Freq.6 GHz
Max Typ. IL (dB)1.05
Min Typ. IL (dB)0.5
IIP3 (dBm)61
Attn Range (dB)0.00–18.00
Attn Step (dB)6
InterfaceParallel
Bits2
Attenuation Accuracy (dB @ 1 GHz)0.1
Switching Time29 ns
ESD HBM (V)2000
Package (mm)3x3
Package12L QFN
PCN/EOL

PCN – January 9, 2019: Product Specification

PCN – August 18, 2017: Wafer Fabrication Process – Dual Source, Ordering Code

About Product

Key Features

      Attenuation: 6 dB/12 dB steps to 18 dB
      Fast switching time of 29 ns
      Low attenuation error
      High linearity
      Wide supply range of 2.3V to 5.5V
      1.8V control logic-compatible
      105°C operating temperature
      ESD performance
      Parallel control
      Package—12-lead 3x3 mm QFN
