UltraCMOS® SP4T RF Switch

UltraCMOS® SP4T RF Switch

PE42540

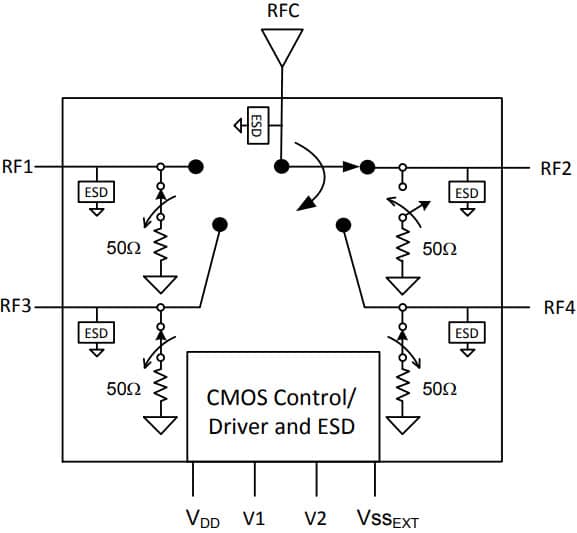

The PE42540 is a HaRP™-enhanced Absorptive SP4T RF switch developed on UltraCMOS® process technology. This switch is designed specifically to support the requirements of the test equipment and ATE market. It is comprised of four symmetric RF ports and has very high isolation. An on-chip CMOS decode logic facilitates a two-pin low voltage CMOS control interface and an optional external Vss feature. High ESD tolerance and no blocking capacitor requirements give this switch excellent integration and ruggedness.

Specifications

DescriptionSP4T (A)
Min Freq.10 Hz
Max Freq.8 GHz
Max Typ. IL (dB)1.2
Min Typ. IL (dB)0.7
Max Typ. Iso (dB)84
Min Typ. Iso (dB)27
P1dB/P0.1dB (dBm)33.0 / –
IIP3 (dBm)58
Max Power Rating (dBm)30
Max Temp (ºC)85
VDD Range (V)3.0–3.6
Switching Time5 µs
ESD HBM (V)2000
Package (mm)5x5
Package32L LGA
PCN/EOL

PCN – August 31, 2021: Manufacturing Site, Ordering codes change

PCN – September 14, 2018: Electrical Test – location change, Manufacturing Site – assembly site change, Ordering codes change

PCN – November 17, 2017: Wafer Fabrication Process, Ordering codes change

PCN – February 15, 2017: Assembly Process – New package laminate, Ordering codes change

Key Features

      HaRP™ technology-enhanced
      High linearity
      Low insertion loss
      High isolation
      Maximum power handling
      High ESD tolerance
      Packaging: 32-lead 5 × 5 mm LGA
