FlexiCP™ PE25208

FlexiCP™ PE25208

PE25208

ico-download-2PDF

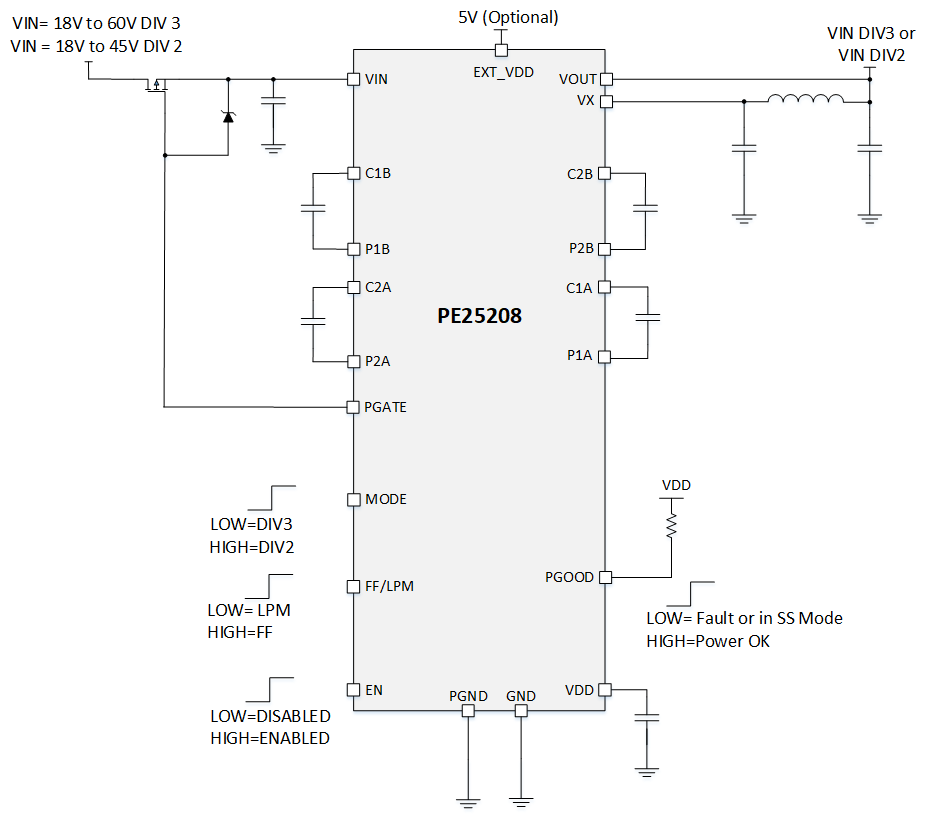

The PE25208 is an ultra-high efficiency charge pump capacitor divider that is configurable to divide an input voltage by two or three and delivers up to 10A with peak efficiency up to 98.2%. The PE25208 can also be used in parallel to increase output power to support 240W 48V USB-PD EPR applications.
The PE25208 supports an input voltage range of 18V to 52V in divide-by-2 mode and 18V to 60V in divide-by-3 mode. The PE25208 is primarily used as a front-end converter to convert the USB PD EPR input to a lower voltage for a downstream charger circuit with improved overall system efficiency.

Sales & Support
Buy Now
Download Materials

Technical Resources

You can view technical documents about Power Semiconductor.
Click the download button to view or download the file.
*The information in the datasheets may be modified without notice or may become unavailable.

Datasheet

Product Brief

Evaluation Kit (EVK) User’s Manual

RoHS Compliance Certificate

REACH Compliance Certificate

Application Note:
Soldering Guidelines for Mounting Wafer-level Chip Scale Packages (WLCSP)

Industry-Leading Product

Specifications

IOUT [A]

6.7-10

VIN [V]

Div 2: 18-52
Div 3: 18-60

VOUT [V]

Div 2: Vin/2
Div 3: Vin/3

Peak Efficiency [%]

Div 2: 98.2%
Div 3: 97.8%

Package

WLCSP

Product Family

FlexiCP™

ECCN Number

EAR99

Lifecycle: In Production

About Product

Key Features

  • Proprietary architecture enables industry-leading efficiency in an ultra-compact footprint and low- profile solution
  • Parts can be operated in parallel for higher output power
  • Input voltage range of 18V to 60V supports USB PD EPR input and custom AC–DC bricks
  • Peak efficiency of 98.2%
  • Selectable divide-by-3 or divide-by-2 mode
  • Fully protected with input under-voltage, output short circuit detection and thermal shutdown fault detection
  • Low EMI fixed-frequency operation under heavy load conditions
