UltraCMOS® SPDT RF Switch

NEW
UltraCMOS® SPDT RF Switch

PE42727

ico-download-2PDF

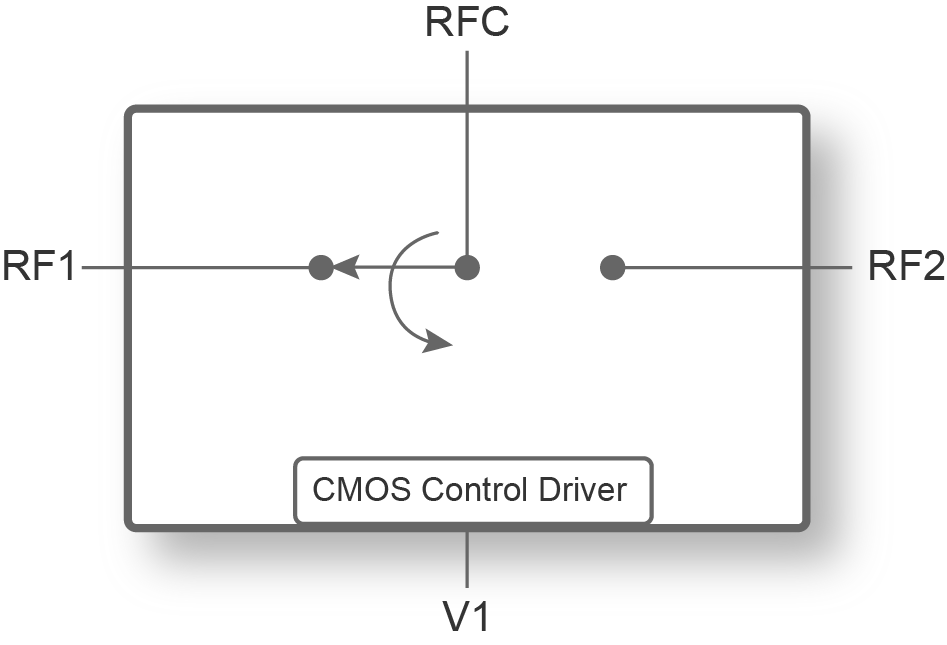

The PE42727 is a HaRP™ technology-enhanced reflective SPDT RF switch designed for use in cable applications, including DOCSIS 3.0/3.1/4.0 cable modems, set-top boxes, and residential gateways. It delivers high linearity and excellent harmonics performance in the 5–3100 MHz band. It also features low insertion loss and high isolation performance, making the PE42727 ideal for DOCSIS 3.0/3.1/4.0 applications.

Sales & Support
Buy product
Download Materials

Technical Resources

Industry-Leading Product

Specifications

DescriptionSPDT (R)
Min Freq.5 MHz
Max Freq.3100 MHz
Typ. IL (dB)0.29
Max Typ. IL (dB)0.55
Min Typ. IL (dB)0.16
Typ. Iso (dB)64
Min Typ. Iso (dB)30
P1dB/P0.1dB (dBm)87 (dBmV)
Max Power Rating (dBm)85
Max Temp (ºC)85
VDD Range (V)2.3–5.5
Switching Time38 µs
ESD HBM (V)2000
Operating Frequency (GHz)5-3100
Package (mm)3x3
Supply Voltage (V)2.3-5.5
Package12L QFN
ECCNContact Support

Lifecycle: In Production

About Product

Key Features

      Supports DOCSIS 4.0 requirements
      Exceptional harmonics: 2fo: -121 dBc @ 17 MHz, 3fo: -140 dBc @ 17 MHz
      Best-in-class linearity across the frequency band
      Low insertion loss: 0.4 dB @ 1784 MHz
      High isolation: 40 dB @ 1794 MHz
      Packaging: 12-lead 3.0 × 3.0 × 0.75 mm QFN
