UltraCMOS® SP6T RF Switch

UltraCMOS® SP6T RF Switch

PE42562

ico-download-2PDF

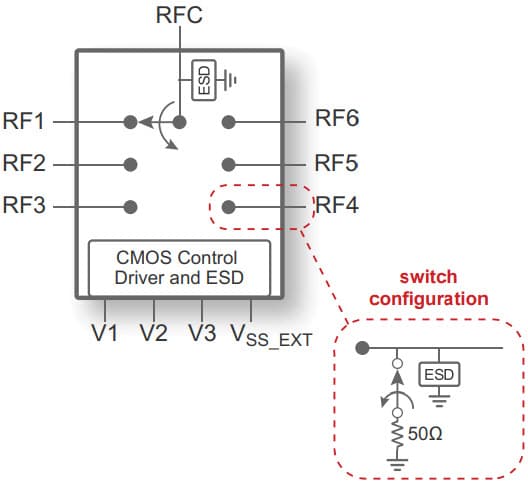

The PE42562 is a HaRP™ technology-enhanced absorptive SP6T RF switch that supports a frequency range from 9 kHz to 8 GHz. An external VSS pin is available for bypassing the internal negative voltage generator in order for the PE42562 to deliver spur-free performance. It delivers high isolation, low insertion loss and fast switching time, making this device ideal for filter bank switching and RF signal routing in test and measurement and wireless applications up to 8 GHz. No blocking capacitors are required if DC voltage is not present on the RF ports.

Contact Sales & Support
Buy product
Download Materials

Technical Resources

Industry-Leading Product

Specifications

DescriptionSP6T (A)
Min Freq.9 kHz
Max Freq.8 GHz
Max Typ. IL (dB)1.6
Min Typ. IL (dB)0.7
Max Typ. Iso (dB)68
Min Typ. Iso (dB)30
P1dB/P0.1dB (dBm)40.0 / 37.5
IIP3 (dBm)60
Max Power Rating (dBm)33
Max Temp (ºC)105
VDD Range (V)2.3–5.5
Switching Time0.21 µs
ESD HBM (V)1000
Package (mm)4x4
Package24L QFN
About Product

Key Features

      High isolation: 35 dB @ 6 GHz
      Low insertion loss: 1.1 dB @ 6 GHz
      Fast switching time of 210 ns
      Power handling of 33 dBm CW
      Logic select (LS) pin provides maximum control logic flexibility
      Terminated all-off state mode
      External VSS pin to eliminate spur
      Packaging: 24-lead 4 × 4 mm QFN
