PE562212: The Smallest, Fully Integrated RF-SOI FEM
Leveraging three decades of leadership in RF SOI innovation, the PE562212 provides flexibility and performance value for IoT device designers and manufacturers
With a 14-lead 1.8 × 1.8 × 0.63 mm LGA package (MSL3), the PE562212 is an IoT FEM specifically designed for space-constrained applications, delivering superior flexibility and value to IoT device makers. The PE562212 enables connectivity across Thread, Zigbee®, Bluetooth® BDR/EDR, Bluetooth Low Energy (Bluetooth LE), and low-to-medium throughput Wi-Fi® (MCS7) and 2.4 GHz proprietary applications. It can be used to connect everything from smart speakers, smart lighting, smart thermostats, and in-home appliances to IoT hubs, range extenders, wireless audio, wearables, sensors, asset tracking applications, industrial devices, and more to ensure link robustness.
The new IoT FEM is designed with both efficiency and linearity in mind as it enables higher data rate applications such as Wi-Fi, striking the delicate balance of adequate linear power with power efficiency. Powered by pSemi’s proprietary UltraCMOS technology®, the PE562212 leverages high-performance capabilities and integration for PCB-limited IoT applications with up to +21-dBm output power and digital Tx gain control of 1-dB steps with a 15-dB range. It also delivers industry-leading receive (Rx) capability (1.6 dB NF, typical) and low-loss bypass path (-0.6 dB, typical) with a GPIO control interface.
The PE562212’s ultra-compact design provides PCB space savings and easier board routing with 50-ohm I/O interfaces requiring no external matching. The FEM also offers excellent ESD and ruggedness for all intended applications and environmental conditions inherent to the IoT space. The PE562212 is designed for ease of use and maximum flexibility.

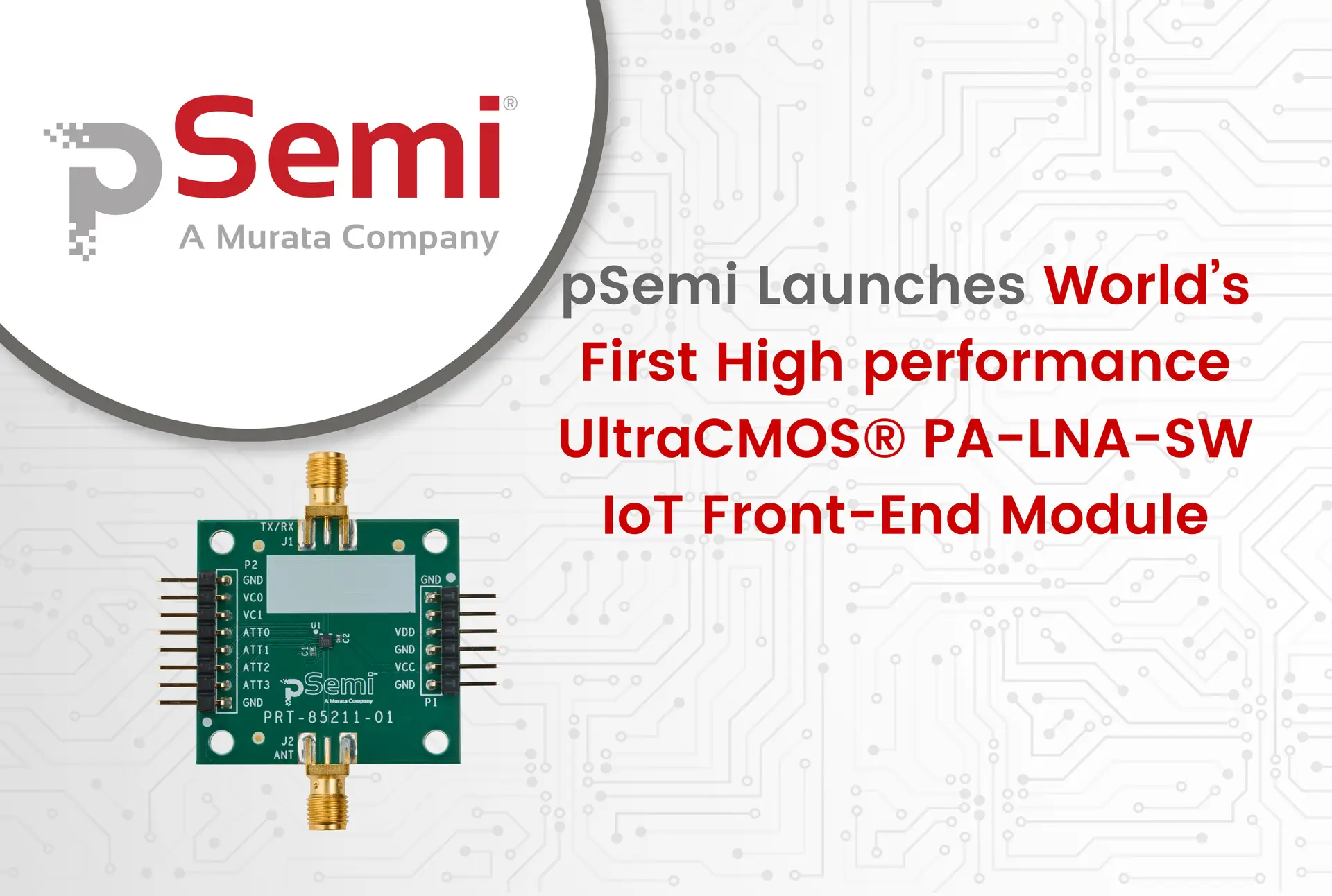

Production samples and EVKs for PE562212 are available now, directly through pSemi. For more information on pSemi’s IoT FEM, please stop by the Embedded World 2025 Murata Exhibit located in Hall 4A Booth 4A-646, or visit the PE562212 product page. To request a sample, please contact sales@psemi.com.
About pSemi
pSemi (formerly Peregrine Semiconductor) is a leader in the design and development of semiconductor integration, providing world-class capabilities with high-performance RF, analog and mixed signal solutions. With a 30-year legacy of technology advancements, strong IP portfolio and deep expertise in RF integration, our solution portfolio spans power management, connected sensors, antenna tuning, and RF frontends, which enable advanced modules for smartphones, base stations, personal computers, electric vehicles, data centers, IoT devices, healthcare and more. A wholly-owned subsidiary of Murata Electronics North America, Inc., pSemi is headquartered in San Diego, with additional offices spanning North America, Europe, and Asia. For more information, please visit www.psemi.com and connect on LinkedIn at https://www.linkedin.com/company/psemi/.
