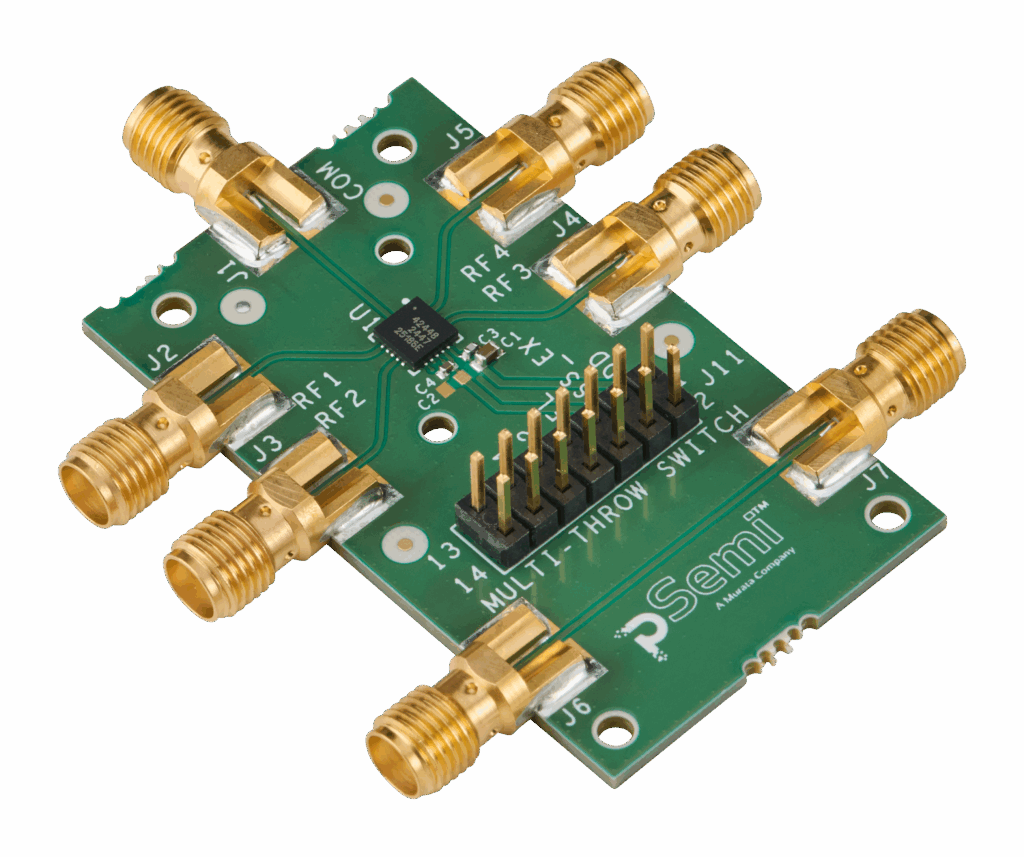

UltraCMOS+™ SP4T RF Switch – PE42448
The PE42448 is a HaRP™ technology-enhanced SP4T RF switch that supports a frequency range from 10 MHz to 6 GHz. It delivers extremely low insertion loss and high linearity with high input power handling capability making this device ideal for hybrid analog beamforming and in 5G massive MIMO (multi-input multi-output) applications. No blocking capacitors are […]
UltraCMOS+™ SPDT RF Switch
The PE42528 is a HaRP™ technology-enhanced reflective SPDT RF switch that supports a wide frequency range from 9 kHz to 32 GHz. It delivers low insertion loss, fast switching time and high isolation performance, making this device ideal for test and measurement (T&M), 5G mmWave, microwave backhaul, radar and satellite communication applications. No blocking capacitors […]
UltraCMOS® SP4T RF Switch
The PE42441 is a HaRP™ technology-enhanced absorptive SP4T RF switch designed for use in various switching applications spanning multiple markets including wireless infrastructure, broadband, and test and measurement. This switch has four symmetric RF ports and delivers low insertion loss and exceptional isolation. An on-chip CMOS decode logic facilitates a two-pin low voltage CMOS control […]
UltraCMOS® SPDT RF Switch
The PE4239 UltraCMOS® RF Switch is designed to cover a broad range of applications. This reflective switch integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface, and can be controlled using either single-pin or complementary control inputs. Using a nominal 3V power supply, a typical input 1 dB compression point of +27 […]
UltraCMOS® SPDT RF Switch
The PE42421 UltraCMOS® RF switch is designed to cover a broad range of applications from 10 MHz through 3 GHz. This reflective switch integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface, and can be controlled using either single-pin or complementary control inputs. Using a nominal 3V power supply, a typical input […]
UltraCMOS® SP3T RF Switch
The PE42430 is a HaRP™-enhanced reflective SP3T RF switch developed on the UltraCMOS® process technology. This tiny general purpose switch is ideal for WLAN and bluetooth applications in the 2.4–2.5 GHz bands as well as general broadband switching applications. It is comprised of three RF ports and has low insertion loss and high isolation. An […]
UltraCMOS® SP4T RF Switch
The PE42440 is a HaRP™-enhanced SP4T RF switch developed on the UltraCMOS® process technology. This general-purpose switch contains four identical RF ports and can be used in a multitude of applications up to 3000 MHz. It integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface and requires no DC blocking capacitors. This […]
UltraCMOS® SPDT RF Switch
The PE4245 RF Switch is designed to cover a broad range of applications from near DC to 4000 MHz. This switch integrates on-board CMOS control logic with a low voltage CMOS compatible control input. Using a 3V nominal power supply, a 1 dB compression point of +27 dBm can be achieved. The PE4245 also exhibits […]
UltraCMOS® SPDT RF Switch
The PE4250 is a HaRP™-enhanced reflective SPDT RF switch for use in general switching applications and mobile infrastructure. This device offers a flexible supply voltage of 3.3/5V, single-pin or complementary pin control inputs, and 4000V ESD tolerance. It presents a simple alternative solution to pin diode and mechanical relay switches.
UltraCMOS® High Isolation SPDT RF Switch
The PE4251 is a HaRP™-enhanced Absorptive SPDT RF switch for use in general switching applications and mobile infrastructure. This device offers a flexible supply voltage of 3.3/5 V, single-pin or complementary pin control inputs, and 4000V ESD tolerance. It presents a simple alternative solution to pin diode and mechanical relay switches.
