Divide-by-4 Prescaler, 3–13.5 GHz

Divide-by-4 Prescaler, 3–13.5 GHz

PE35400

EAR99
ico-download-2PDF

END OF LIFE (EOL)

This product is currently going through the EOL process. It has a last-time buy date of September 27, 2026 and a final ship date of March 27, 2027. For more information, please contact your local sales representative.

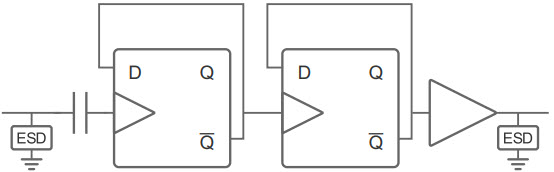

The PE35400 is a high-performance UltraCMOS® prescaler with a fixed divide ratio of 4. It supports an operating frequency range from 3–13.5 GHz. It operates on a single voltage supply with a frequency-selecting bias resistor and draws a low current of 16 mA. The PE35400 is available in bare die.

Sales & Support
Buy product
Download Materials

Technical Resources

Industry-Leading Product

Specifications

DescriptionLow Power
Min Freq.3000 MHz
Max Freq.13.5 GHz
Divide Ratio4
ESD HBM (V)250
Package (mm)-
PackageDie
PCN/EOL

EOL Notice

ECCNEAR99

Lifecycle: Last Time Buy

About Product

Key Features

      High frequency support up to 13.5 GHz
      Low SSB phase noise of –135 dBc/Hz @ 3.025 GHz output frequency
      Low supply current of 16 mA typ
      Bare die
