UltraCMOS+™ SPDT RF Switch

NEW
UltraCMOS+™ SPDT RF Switch

PE42429

EAR99
ico-download-2PDF

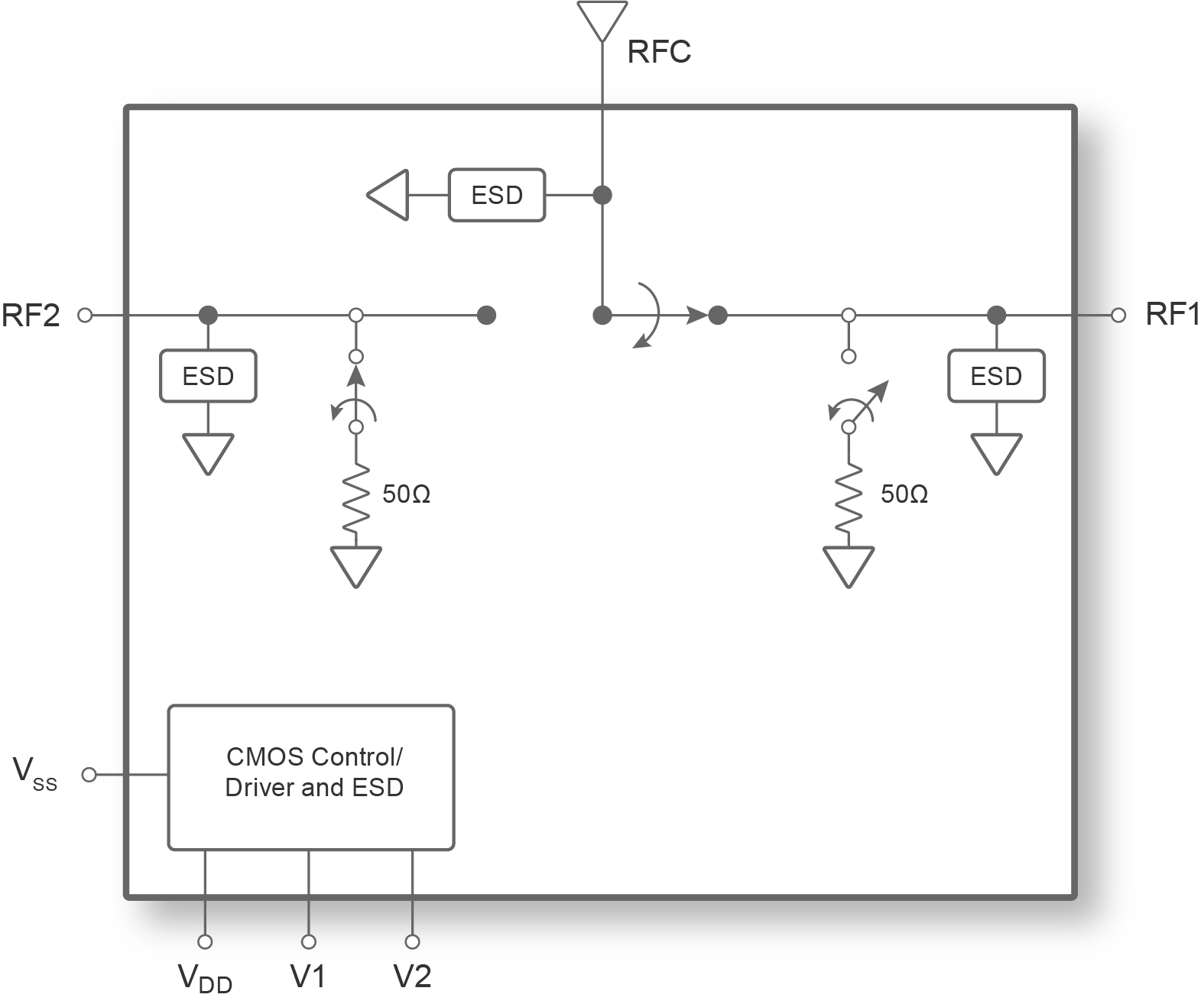

The PE42429 is a HaRP™ technology-enhanced SPDT RF switch designed for use in 4G/5G wireless infrastructure and other high-performance RF applications. It consists of two symmetric RF ports with very high isolation up to 8.5 GHz.

The PE42429 is manufactured using the pSemi UltraCMOS+™ process, a patented silicon-on-insulator (SOI) technology. pSemi’s HaRP technology enhancements deliver high isolation and excellent linearity performance.

Sales & Support
Buy product
Download Materials

Technical Resources

Industry-Leading Product

Specifications

DescriptionSPDT (R)
Min Freq.9 kHz
Max Freq.8.5 GHz
Typ. IL (dB)1.1
Typ. Iso (dB)50
Min Typ. Iso (dB)38
IIP3 (dBm)65
Max Power Rating (dBm)34
Max Temp (ºC)105
VDD Range (V)2.3–5.5
Switching Time490 ns
ESD HBM (V)2000
Package (mm)2x2
Package12L QFN
ECCNEAR99

Lifecycle: In Production

About Product

Key Features

      Operating frequency: 9 kHz to 8.5 GHz
      High isolation: 46 dB @ 6 GHz
      Low insertion loss: 0.8 dB @ 6 GHz
      High linearity: 65 dBm IIP3
      Fast switching time: 490 ns
      Operating temperature range: -40 to +105 °C
      Packaging: 12-lead 2.0 × 2.0 mm QFN
